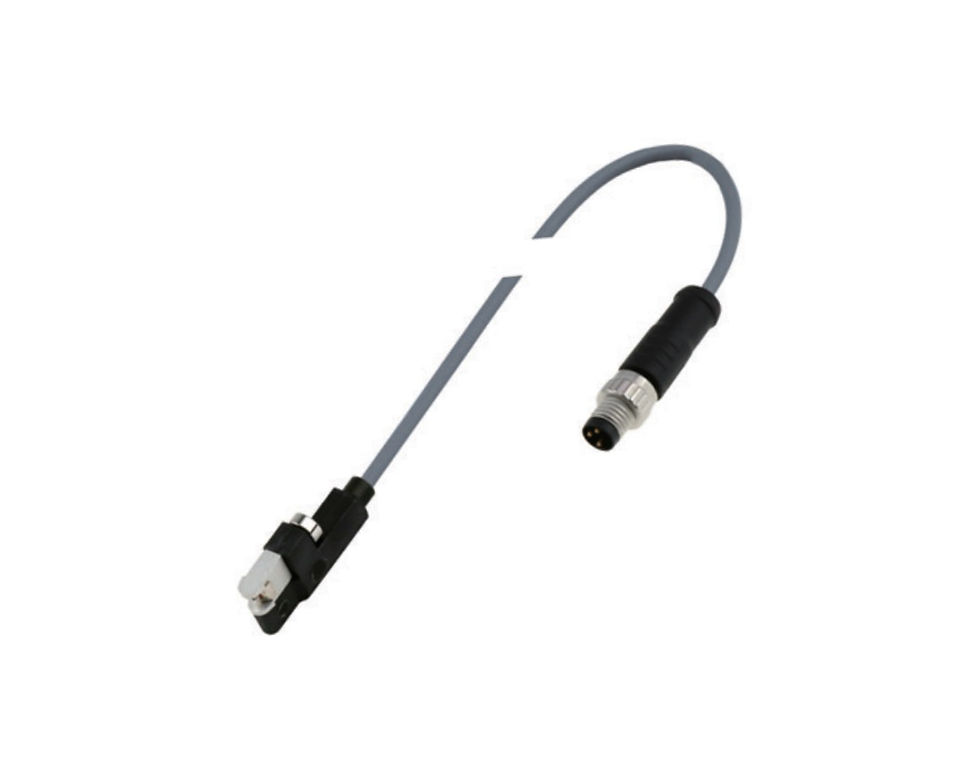

V5M-10G-PO-S-E-M8-xxx
Introducing the V5M-10G-PO-S-E-M8-xxx sensor for reliable cylinder movement. It features a secure C-slot and M8 plug, with a self-locking fixture for quick mounting and adjustment. The 'drop from the top' design allows easy slot fitting, and the moulded cable offers strain relief. Visible switching status and high switching frequency make it ideal for industrial environments. Experience efficiency and reliability with V5 GROUP - VIDIA LTD.

V5M-10G-PO-S-E-M8-xxx

SKU: Magnetic Cylinder Sensors
₪169.00Price

  • TECHNICAL INFORMATION:

    Supply voltage Ub 10...30 V DC
    Voltage drop Ud ≤ 2.5 V
    Rated insulation voltage Ui 75 V DC
    Rated working current Ie 100 mA
    No-load supply current Io max ≤ 8 mA
    Reverse polarity protection/power-signal short-circuit protection Yes/Yes
    Rated switching magnetic field strength I Hn I 1.2 kA/m
    Safely flip the magnetic field strength I Ha I ≥ 2 kA/m
    I Hn I Temperature drift of connecting point ≤ 0.3%/°C
    On/Off delay ≤ 0.07 ms/ ≤ 0.07 ms
    Ambient temperature Ta -25...+85° C
    Degree of protection as per IEC 60529 IP 67
    Certification CE
    Shell material PA 12
    Installation method Can be inserted from the side
    Slot C-slot(Round)
