Introducing our Color Line Scan Camera , a cutting-edge machine vision camera that delivers unparalleled performance and accuracy. With a 7um pixel size and a maximum line rate of 40k, this camera provides exceptional image quality and detail. It also features a built-in large-capacity frame buffer, ensuring that data is processed quickly and efficiently. The camera supports a wide range of working voltages (9-52V) and boasts low power consumption, making it an incredibly energy-efficient option. Additionally, the software is compatible with GigE Vision and GenlCam, making it easy to integrate into your existing system. With a compact dimension of 62mm×62mm×36.8mm, this camera is ideal for a wide range of applications.

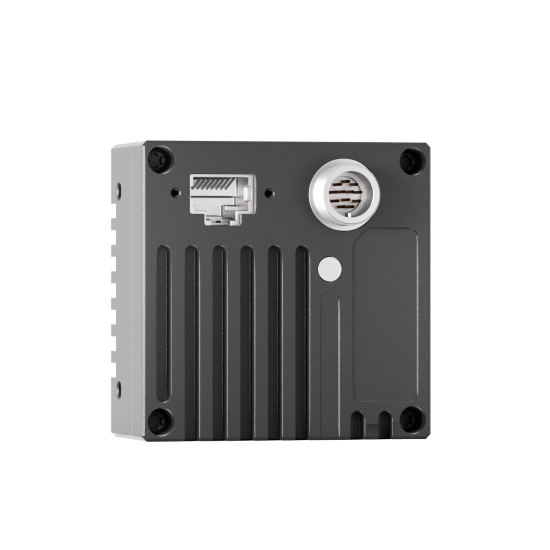

LSC-C4K3-1GG7-30K
Key Features
▪ 7um pixel size, max line rate: 40k
▪ Built-in large-capacity frame buffer
▪ Support 9-52V working voltage, low power consumption
▪ Software compatible with GigE Vision, GenlCam
▪ Dimension: 62mm×62mm×36.8mmGeneral Information
Order Number Camera Category Line Scan Camera Sensor
Imaging Mode 3 lines Pixel Size 7μm Shutter Global Shutter Sensor Type CMOS Resolution (H x V) 4096 px x 3 px Resolution 4k Pixel Size (H x V) 7 μm x 7 μm Line Rate 40 kHz Mono/Color Color Spectrum Visible Camera Data
Interface GigE Video Output Type GigE Pixel Bit Depth - 8 bits
- 10 bits
- 12 bits
Pixel Formats BGR24, RGB24, B8_G8_R8 4 Synchronization - free-run
- hardware trigger
- software trigger
Exposure Control trigger width or timed Digital Input 3 Digital Output 2 Power Supply POE / DC: 9-52V EMVA Data
Quantum Efficiency (typical/minimal) 42.52 % (typical) Dark Noise (typical/maximal) 8.4 e¯ (typical) Saturation Capacity (typical/minimal) 24.7 ke¯ (typical) Dynamic Range (typical/minimal) 69.4 dB (typical) Signal-to-Noise Ratio (typical/minimal) 43.9 dB (typical) Housing
Housing Type Box Housing Size (L x W x H) 62 mm x 36.8 mm x 62 mm Lens Mount - M42 x 0.75
- M42 x 1
Operating Temperature -10 °C - 50 °C Manufacturer
V5 GROUP Conformity
- CE
- IP30
- RoHS
Software support
VENUS ESSENTIAL - State of the art quality control software for wide range industrial applications for more information see vidia.ai website.
Documentation
More specifications can be found in the Basler Product Documentation.
